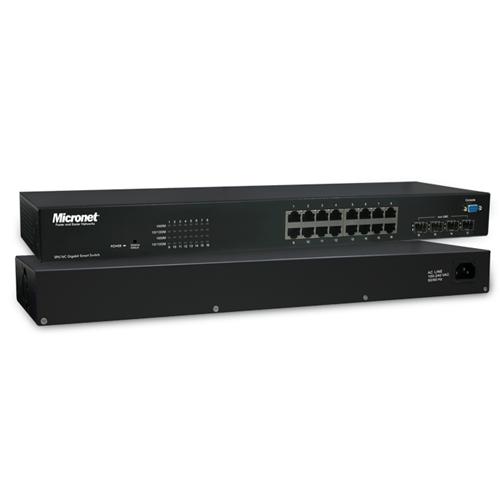

Micronet SP676C - 16-Port 10/100/1000 Mbps Gigabit Web Smart Management Switch with 4 Shared mini-GBIC Slots, Support 802,1Q VLAN, Port Trunk, 802,1P QoS and SNMP V1.

Micronet SP676C - 16-Port 10/100/1000 Mbps Gigabit Web Smart Management Switch with 4 Shared mini-GBIC Slots, Support 802,1Q VLAN, Port Trunk, 802,1P QoS and SNMP V1.Foto aggiuntive: [ 1 ]
Cod. art.: SP676C
Marca: Micronet
Unità di misura: PZ

Descrizione

Micronet SP676C Gigabit Smart Switch delivers wire speed Gigabit performance and web-based management functions, suitable for high performance workgroups and server applications. With 16 10/100/1000Mbps RJ-45 ports and 4 shared mini-GBIC slots for fiber optic connection, it provides a perfect solution for huge data transmission and preserves the great flexibility of network infrastructure.

Overview

  • Compliant with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-LX/SX and IEEE802.3x flow control standards
  • Support IEEE802.1q tag-based VLAN and IEEE802.1p traffic prioritization
  • Provide 8K MAC address entries and 16 groups of tag-based VLAN table
  • Provide 16 RJ-45 port of 10/100/1000Mbps and 4 shared SFP slots for fiber extension
  • Support up to 8 ports and 8 groups of port aggregation
  • Support QoS function, port base, tag base and DSCP priority
  • Support Rate Limit (ICMP Rate, Broadcast Rate, Multicast Rate)
  • Support Port Mirror
  • Supports 340K bytes buffer Memory
  • Support Jumbo frame 9K bytes
  • Provide console port and web-based management interfaces
  • Support SNMP
  • 19” Rack mountable



Specification

Model

SP676C

Standard

IEEE 802.3, 10BASE-T

IEEE 802.3u, 100BASE-TX

IEEE 802.3ab, 1000BASE-T

IEEE802.3z 1000Base-LX/SX

IEEE 802.3x, Flow Control

IEEE 802.1Q, VLAN interoperability

IEEE802.1P, Traffic prioritization

Interface

16 x RJ-45 ports of 10/100/1000Mbps

4 x SFP slots (shared with RJ-45)

Hardware

Buffer memory: 340 KB

MAC Address Table: 8K entries

Jumbo frame: 9216K

Cable Connection

RJ-45 (10BASE-T): Cat.3,4,5 UTP/STP

RJ-45 (100BASE-TX): Cat.5 UTP/STP

RJ-45 (1000BASE-T): Cat. 5,5e UTP/STP

Fiber: depend on SFP types

Feature

Auto Uplink (Auto MDI / MDI-X)

Auto negotiation

Port trunk(12 Group)

Port-based VLAN(16 Group)

Tag-based VLAN(16 Group)

QoS

Port Mirror

Filtering/Forwarding Rate

10Mbps: 14,880pps/14,880pps

100Mbps: 148,800pps/148,800pps

1000Mbps: 1,488,000pps/1,488,000pps

QoS

Traffic Classification (by CoS, ToS/DSCP)

Queuing (4 priority queuing per port)

Management

Web-based, Console, SNMP

SNMP & MIBs

SNMP

Environment

Operating Temperature: 0 ~ 40°C

Operating Humidity: 10 ~ 90% (Non-Condensing)

Power

AC 100-240V, 50/60Hz

Internal power supply

Dimension, W x D x H

130 x 441 x 44.1 mm

Weight

1.96kg

Emission

CE
