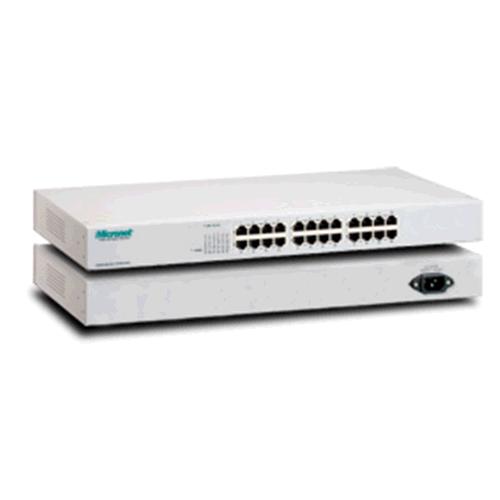

Micronet SP624R - 24-Port 10/100M Switch, 19" Rack-Mount.

Descrizione

Micronet SP624R 10/100M Switch provides powerful, high-performance Ethernet switch, with all ports capable of 10 and 100M auto-negotiation operation. With its intelligent addressing engine, it provides users with a wire-speed filtering and forwarding of the traffic. All ports support auto-uplink detection, so users don´t have to worry about the cable type. Each port will automatically communicate for best speed and to run in half- or full-duplex mode. Store-and-forward switching prevents damaged packets and network errors from being passed on into the network.

Overview

• Provide 24 RJ-45 ports of 10/100M, auto-negotiation
• Provide auto uplink function, no more cross-over cable
• Compliant with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX and IEEE802.3x flow control
• Support Auto-Negotiation function to automatically select optimal speed (10/100Mbps) and mode (Full/Half Duplex)
• Support auto uplink, no more cross-over cable
• Support 802.3x flow control for full-duplex mode and back-pressure flow control for half-duplex mode
• Forward and filter packets at non-blocking, full wire speed
• Supports 8K MAC address entries and 160k buffer memory
• 19" rack-mountable size
• 100 - 240V AC, universal internal power supply

Specification
