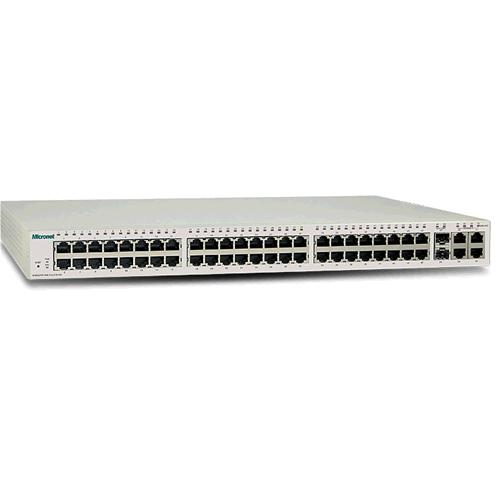

Micronet SP6052WS - 48-Port 10/100M + 4-Port Gigabit Web Smart Management Switch with 2 Combo Mini-GBIC Ports, 802,1Q VLAN, 802.1P Priority Queues.

Micronet SP6052WS - 48-Port 10/100M + 4-Port Gigabit Web Smart Management Switch with 2 Combo Mini-GBIC Ports, 802,1Q VLAN, 802.1P Priority Queues.Foto aggiuntive: [ 1 ]
Cod. art.: SP6052WS
Marca: Micronet
Unità di misura: PZ

Servizi

StampaRichiedi informazioni

Descrizione

Micronet SP6052WS, 48 10/100M + 4 Gigabit Web Smart switch provides 48 ports of 10/100M, 4 ports of 10/100/1000M, and 2 mini-GBIC slots. It is ideal for network environment requiring high port density and gigabit connectivity. All ports support auto MDI/MDIX and auto negotiation for data rate which will provide straight forward installation and upgrade of company’s existing network. The switch also supports various management functions: Tag-based VLAN, Static Port Trunk, Port Mirror and web-based management interface.

Overview

  • 48 x 100BASE-TX Auto-negotiation Fast Ethernet ports
  • 4 x 1000BASE-T Auto-negotiation Gigabit Ethernet ports
  • 2 x 1000BASE-T Combo mini-GBIC (Auto-Sense)
  • All ports support auto MDI/MDIX
  • Support IEEE 802.1Q VLAN and IEEE 802.1p Priority Queues
  • Support Static Port Trunk and Port Mirror
  • Support Broadcast Storm Control
  • Easy configuration via WEB Browser and Management Utility



Specification

Model

SP6052WS

Standard

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-SX/LX

Interface

48 x 10/100Mbps RJ-45 ports

4 x 10/100/1000Mbps RJ-45 ports

2 x Shared SFP slots

Hardware

Buffer memory: 128 KB

MAC Address Table: 8K entries

Switch Fabric: 8.8Gbps

Feature

Star Topology

Store-and-forward

IEEE 802.1Q VLAN

IEEE 802.1p Priority Queues(2)

Static Port Trunk

Broadcast Storm Control

Port Mirroring

Port Control

Filtering/Forwarding Rate

10Mbps: 14,880pps

100Mbps: 148,800pps

1000Mbps: 1,488,000pps

Management

Web-based, Management Utility

Environment

Operating Temperature: 0 ~ 40°C

Operating Humidity: 10 ~ 90% (Non-Condensing)

Power

AC 100-240V, 50-60Hz

Internal Universal Power Supply

Dimension, W x D x H

441 x 200 x 44 mm

Weight

3.2 kg

Emission

FCC Class A, CE Mark Class A, VCCI Class A
