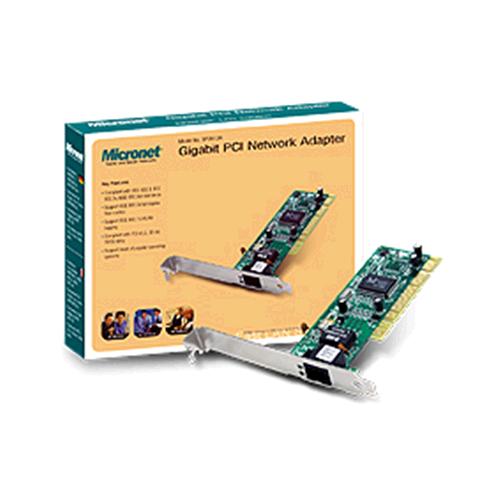

Micronet SP2612R - 10/100/1000M Gigabit Ethernet Adapter, 32-bit PCI, RJ45.

Micronet SP2612R - 10/100/1000M Gigabit Ethernet Adapter, 32-bit PCI, RJ45.Foto aggiuntive: [ 1 ]
Cod. art.: SP2612R
Marca: Micronet
Unità di misura: PZ

Servizi

StampaRichiedi informazioni

Descrizione

Micronet SP2612R Gigabit PCI Network Adapter operates at 10/100/1000 Mbps using existing Cat.5e/6 networking cable and boosts your connection speed with 2,000 Mbps of full-duplex bandwidth over copper wiring. The plug and play technology ensures trouble-free setup and performance.

Overview

  • Compliant with IEEE802.3 10BASE-T, IEEE 802.3u 100BASE-TX and IEEE 802.3ab 1000BASE-T standards
  • 1 RJ-45 connector with auto-uplink
  • Support PCI V2.2, 32-bit, 33/66 Mhz
  • Auto-Negotiation determines the transmission speed at 10/100/1000 Mbps and full/half duplex speed
  • Optimized for multi-tasking with today's large files and demanding applications
  • Support Microsoft Windows NT4.0, 98/98SE, ME, 2000, XP, XP-64 bit, Vista and Linux



Specification

Model

SP2612R

Standard

IEEE802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3x Full Duplex Flow Control

Cable Connections

UTP Cat. 3,4,5 for 10BASE-T

UTP Cat. 5 for 100BASE-TX

UTP Cat.5,5e,6 for 1000BASE-T

Bus Interface

Bus Type: PCI V2.2, 32-bit, 33/66 Mhz

Connector: RJ-45 (auto-negotiation)

Environment

0°C ~ 45°C

Hardware

5 % ~ 95 % (non-condensing)

Weight

50g

Dimensions, W x D x H

119mm (length) x 45mm (width) x 16mm (height)

Emission

FCC, CE
