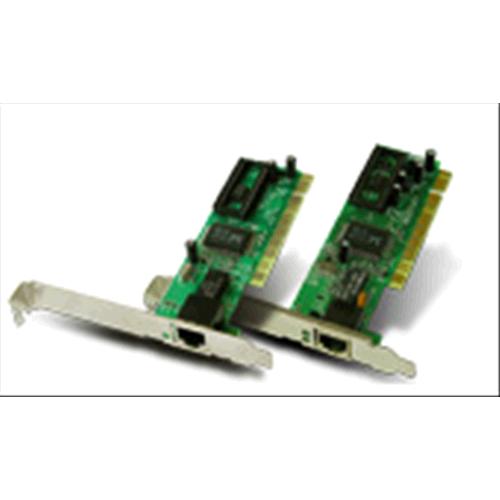

Micronet SP2500RS - 10/100M Ethernet LAN Card, PCI.

Micronet SP2500RS - 10/100M Ethernet LAN Card, PCI.Foto aggiuntive: [ 1 ]
Cod. art.: SP2500RS
Marca: Micronet
Unità di misura: PZ

Descrizione

Micronet SP2500RS is a high performance 10/100 Mbps dual speed Fast Ethernet adapter. It delivers the reliable quality, superior performance and ease of installation. This card features N-Way auto-negotiation, for automatic selection of the network speed and full/half duplex mode with the partner.

Overview

  • Compliant with IEEE802.3 10BASE-T, IEEE 802.3u 100BASE-TX standards
  • 32-bit bus master for high throughput and low CPU utilization
  • Comply with PCI Local Bus reversion 2.0/2.1 specification
  • Full-duplex operation at both 10 Mbps and 100 Mbps
  • Support 10/100 Mbps auto-sensing capability
  • Three status LED mounted on bracket for easily viewing and troubleshooting
  • Single shield RJ45 connector for using at either speed (Category 3, 4, or 5 UTP cable for 10 Mbps Operation, and Category 5 UTP cable for 100 Mbps Operation)
  • Support all popular PC network operating systems
  • Plug and Play Installation, jumper-less board with software configuration program
  • FCC, CE Certification



Specification

Model

SP2500RS

SP2500RSW

Standard

IEEE802.3/802.3u, 10BASE-T/100BASE-TX

Feature

N/A

Wake-on-LAN

Cable Connections

RJ45 (10BASE-T) UTP Category 3, 4, 5

RJ45 (100BASE-TX) UTP Category 5

Base I/O Addresses

Assigned by BIOS

Bus Interface

32-bit

Hardware Interrupt

PCI INTA

Software Compatibility

NetWare Server, DOS ODI driver, Windows for Workgroups, Client 32 for Windows 95/98/ME/2000/XP, Windows NT, LAN Manager, IBM LAN Server, OS/2 Extended Edition, NDIS driver for DEC Pathworks and Banyan, Packet Driver, SCO Unix, Linux

Environment

0 to 55 Degree C

Hardware

10% to 90%

Dimensions, W x D x H

123 x 38

Emission

FCC, CE
