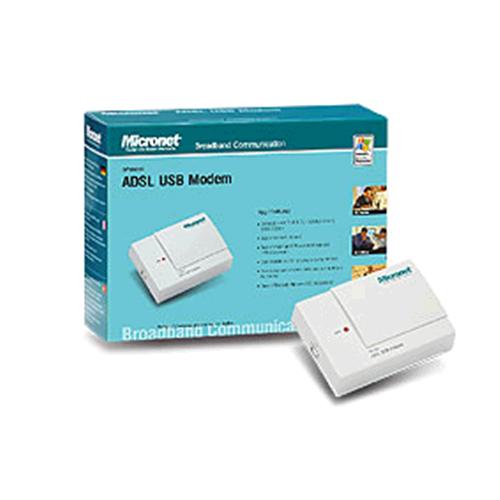

Micronet SP3302A/A - ADSL USB Modem.

Micronet SP3302A/A - ADSL USB Modem.Foto aggiuntive: [ 1 ]
Cod. art.: SP3302A/A
Marca: Micronet
Unità di misura: PZ

Servizi

StampaRichiedi informazioni

Descrizione

Micronet SP3302A ADSL USB Modem is designed for PC consumer installation through a USB port. It provides a convenient way to surf Internet through ADSL line without network adapter on the computer and is widely suitable for ADSL service from 256K/64K to 8M/640K for single user.

Overview

  • Compliant with ANSI T1.413 Issue 2, ITU-T G.992-1 (G.dmt), G992.2 (G.lite) standards
  • Support up to 8M for downstream and 1M for upstream
  • Support Discrete Multi Tone (DMT) modulation
  • Support Bridged, PPPoE, PPPoA and Classical IPoA operating modes
  • Support VC and LLC based multiplexing
  • Low power consumption
  • USB 1.1 Plug-n-Play interface, easy install
  • Working with operating system Windows 98SE/ME/2000/XP



Specification

Model

SP3302A/A



Standard

ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite), CAP (T1 TR-59)

Interface

USB 1.1 connects to PC

RJ-11 connects to ADSL line

Line Type

Annex A



Modulation

Discrete Multi Tone modulation

LED Indicators

Status

Data Rate

Up to 8M downstream

Up to 832K upstream

Protocol

Full ATM protocol stacks implementation over ADSL, such as ATM TC layer, ATM layer with traffic shaping, AAL layer (AAL5 & SAR), PPP over ATM and Classical IP over ATM

Driver Support

Windows 98/Me/2000/XP

System Requirements

Pentium 100MHz CPU or faster

32MB system memory or more

10MB free space on your hard drive

256-color VGA or higher resolution

CD-ROM drive

One available USB port

Operating Temperature

0°C ~ 50°C

Operating Humidity

5%~ 90%, non- condensing

Power

No extra power needed

Dimension, W x D x H

114 x 80 x 25

Weight

300

Emission

CE, FCC
