Descrizione

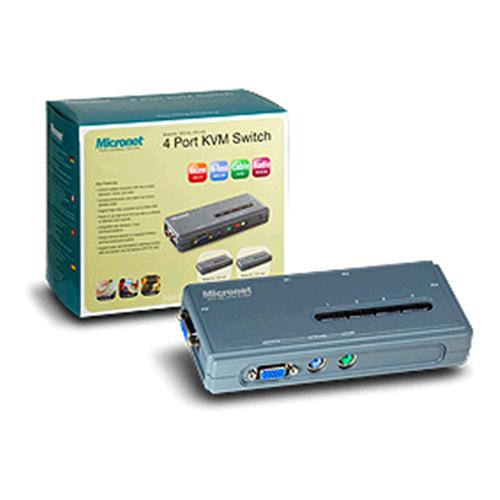

The Micronet SP214EL
4-Port KVM switch is a compact device for managing multiple PCs via
a single set of local equipment (keyboard, mouse, and monitor). Its
compact in nature helps user to placed on desktop or be hidden from
view. The device provides push button and hotkey for easy operation
at a touch of a fingertip.
Overview
- Supports high VGA resolutions up to 2048 x 1536
- Control 4 computers with a single set of keyboard, mouse
and monitor
- Support scrolling mouse & multi-button mouse
(Microsoft, Logitech, etc.)
- Easy installation with Plug & Play, no external
software or other supporting interface card required
- Switch computers easily with convenient hotkeys and push
button
- Supports Auto-Scan function to alternate video between
both computers in preset intervals 5~100 sec
Specification
|
Model |
SP214EL |
|
Computer Connections |
4 |
|
LED Indicator |
PC Ports |
|
Installation Type |
Desktop |
|
Methods of Control |
Hot-Key |
|
Push Buttons |
|
Auto Scan Interval |
5~100 secs |
|
VGA Resolution |
2048 x 1536 |
|
Console Connector |
Video: HDB-15(Female) |
|
Keyboard: PS/2 |
|
Mouse: PS/2 |
|
Computer Connector |
HDB 15-pin (Female) |
|
Cable Type |
3-in-1 KVM cable |
|
Compatible OS |
Windows |
|
Linux |
|
MAC |
|
Sun Micro System |
|
Operating Temperature |
0 °C ~ 50 °C |
|
Operating Humidity |
0%~80%, non-condensing |
|
Weight (kg) |
0.193 |
|
Dimension (mm) |
164 x 72 x 26 |
|
Emission |
FCC, CE |
