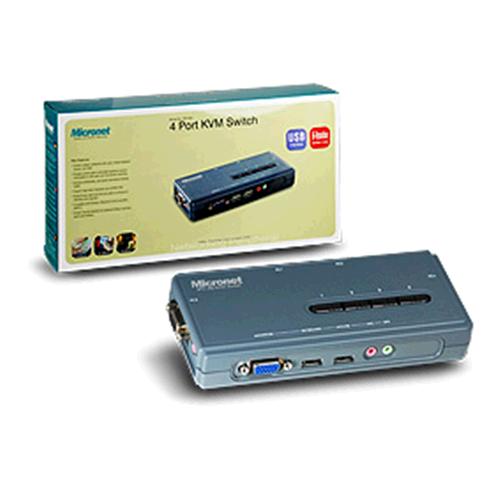

Micronet SP214D 4-port
KVM switch can share one set of keyboard, mouse, monitor and audio
up to four workstations. It catches up the new technical trend to
save the two PS/2 connectors and use one USB connector to set it
up. From workstation, use the specified KVM cable to link PC“s USB
port to SP214D. The USB connection will be defined as keyboard and
mouse. Furthermore, the audio can be switched with keyboard/mouse
simultaneously or stay tune on the specified workstation. It is
convenient for audio designer to switch audio channel or listen
music for entertainment. SP214D provides the utility to define
hot-key and auto-scan period, and shows the host number in the task
bar. It provides you more convenient way to switch among the four
workstations.
Overview
4-port KVM Switch share one set of keyboard, mouse,
monitor plus audio and Mic
USB console support for USB keyboard and mouse
Audio and Microphone switching for uninterrupted
multimedia experience across multi-platforms
Independent/simultaneous switching of both PC and
audio/mic channel
Multi-platform support for PCs and Macintosh G3/G4 MAC,
iMAC
Hot-plugging PCs for maintenance without powering down
the KVM Switch or PCs
Channel selection by push button, keyboard hotkeys and
Windows-based utility
Support universal and user definable hotkeys
LED indicators for easy status monitoring
High VGA resolution 2048 x 1536
Windows-based utility
USB interface power
4 detachable USB KVM cables and 4 Audio/Mic cables in
box
Specification
Model
SP214D
Computer Connections
4
LED Indicator
1 per port
Installation Type
Desktop
Methods of Control
Hot-key, Push buttons
Auto Scan Interval
10~60
VGA Resolution
2048 x 1536
Console Connector
Video: HDB-15(Female),
Keyboard: USB,
Mouse: USB
3.5mm audio in/out jack
3.5mm mic in/out jack
Computer Connector
HDB 15-pin (Female)
3.5mm audio in/out jack
3.5mm mic in/out jack
Cable Type
2-in-1 KVM cable
Compatible OS
Compatible with Windows, Linux and and Macintosh G3/G4
MAC, iMAC operating systems
