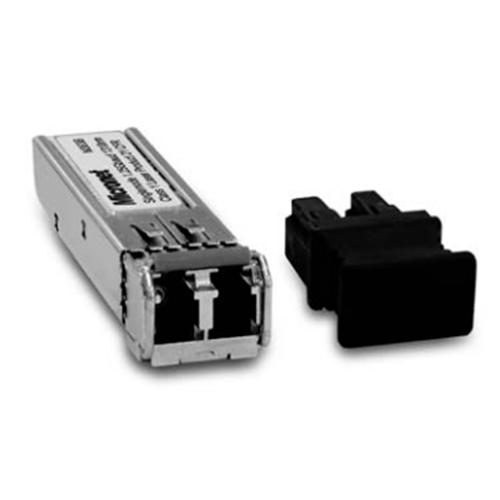

Micronet M363A - SFP 1,25G, 850nm, Multimode,LC Connector,550M for Gigabit SFP Slot.

Micronet M363A - SFP 1,25G, 850nm, Multimode,LC Connector,550M for Gigabit SFP Slot.Foto aggiuntive: [ 1 ]
Cod. art.: M363A
Marca: Micronet
Unità di misura: PZ

Servizi

StampaRichiedi informazioni

Descrizione

Micronet M363A/M363B-10 mini-GBIC modules are small form pluggable (SFP) transceivers with duplex LC connector. Compliant with IEEE 1000BASE-SX/LX standards, they offer increased flexibility for Gigabit Ethernet fiber connections. Supporting full duplex 1000M speed on multi/single-mode fiber for distances of up to 550M/ 2KM/ 10KM/ 20KM/ 40KM/ 60KM/ 80KM/ 120KM, they are the perfect complement to Micronet switches, like SP6524A and SP6524F.

Overview

  • Compliant with 1000BASE-SX/LX standards
  • Compliant with SFP Multi-Source Agreement (MSA)
  • Standard LC Duplex Connector
  • Hot Pluggable
  • Ideal solution for Gigabit data transmission
  • Wide distance supported 550M, 2KM, 10KM, 20KM, 40KM, 60KM, 80KM, 120KM



Specification

Model

M363A /A-2

M363B-10 /B-20 /B-40 /B-60 /B-80 /B-120

Fiber Connection

LC Duplex Connector

Performance

1.25 Gbps

Wavelength

850 nm (830 ~ 860 nm)

1310 nm (1280 ~ 1340 nm)

Optical Power

-9.5~-4/ -9~-1 dBm

-9.5~-3 /-8~-2 /-2~3 / -3~2/ 0~5/ 0~5 dBm

Sensitivity

-20 /-19 dBm

-20 /-23 /-23 /-24 /-24 /-30 dBm

Transmission Range

550 M /2 KM

10 /20 /40 /60 /80 /120 KM

Environment

Operating Temperature: 0~70°C

Operating Temperature: 0~70°C

Operating Humidity: 10~85% (Non-Condensing)

Power

DC 3.3 V, 130 mA

Weight

16 g

Emission

CE, FCC
